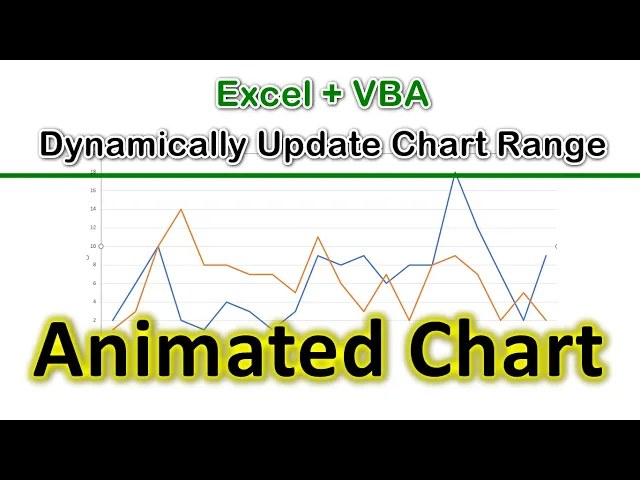

Create Time-Based Animated Excel Chart
5K views
Jul 6, 2024
In this video, let's explore how to create a macro to update chart data at specified time intervals. When you run the macro, it creates an animated chart effect. Watch and learn how to bring your #Excel #charts to life with #VBA!
View Video Transcript
0:00
Let's create an animated chart that updates dynamically, with changes occurring every
0:05
second until the last row of data is reached. First, insert a bar or line chart using a data set similar to the one displayed on the screen
0:14
Identify the chart's data range and chart's name by selecting the chart and viewing the name box, usually like chart 1, chart 2, etc
0:22
Now open the VBA editor by pressing Alt plus F11 then select a module or insert a new one
0:28
Let's enter the VBA code. First, declare two variables. The runtime variable stores the time at which the next scheduled event should occur
0:37
And the counter variable counts the number of times an event has occurred
0:41
We use the value of counter variable to expand the range of chart
0:45
The startDynamicUpdate subroutine initializes the counter variable and then calls the changeChartDataRange
0:50
subroutine, initiating the process of updating the chart data range. The changeChartDataRange subroutine increments the counter variable by 1 and checks if it
0:59
exceeds 21. If it does it exits, stopping further updates. If the counter is within the allowed range, the subroutine sets runtime to 1 second from
1:08
the current time and schedules the changeChartDataRange subroutine to be called at that specified
1:12
runtime, creating a loop of scheduled updates with a 1 second interval
1:17
Next, retrieve references to the worksheet and the chart object within the changeChartDataRange subroutine
1:23
Next, set the new data range for the chart, with the range's row count based on the counter
1:28
Finally, update the chart's source data to the new data range, causing the chart to reflect
1:32
the updated data. The overall behavior of the code is to dynamically update the chart1 and sheet1 of the workbook
1:39
adjusting its data source every second for a maximum of 21 updates
1:44
To test our code, select the startDynamicUpdate subroutine and click the Run icon or press F5
1:50
You also can create a button to link it to the code. When you press the button, it will run the VBA code
1:56
Click the Developer tab, select Insert, choose Button under Form Controls, and click where
2:01
you want the button on the worksheet. The Assign Macro dialog appears
2:06
Select the startDynamicUpdate macro to link and click OK. Thanks for watching
